Numeric Display

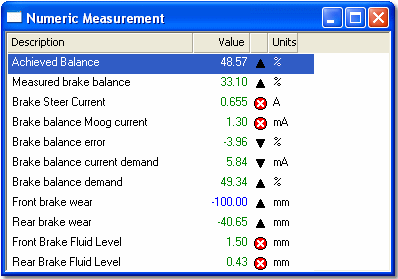

The Numeric Display shows one or more Measurement Parameters in a tabular format. Each parameter is displayed in a row with descriptive text.

Features

• Each row includes:
  • Name / Description: Configurable via the Parameters Sheet in the Window Properties dialog.
  • Value: Display format set in the Parameters Sheet or System Menu.
  • Units: Engineering units symbol or text.
  • Status Icon: Indicates value change or error condition.
• Column widths can be adjusted.
• Parameters can be sorted.
• If a parameter is not included in the Live Logging Configuration, its value is replaced by a dash.

Big Number Display

A Big Number Display is a specialised Numeric Display created when a single Measurement Parameter is selected via Parameter Explorer.

Differences from Numeric Display

• Uses the default large font.
• Name column is hidden.
• Parameter Name/Description shown in the title bar.
• Column headings are hidden.
