Event Display#

Events report status changes in the control system and include a timestamp. They are defined by the Event File in the Program Version.

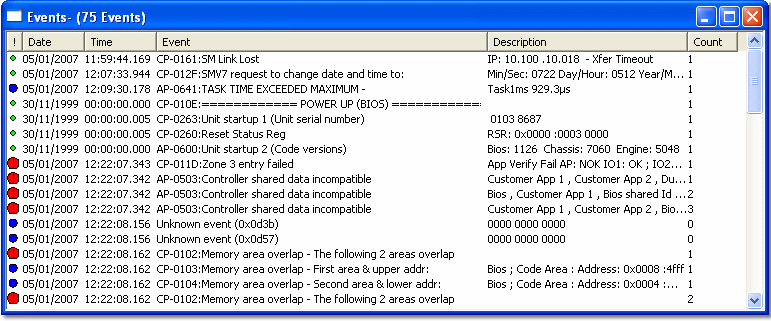

Event

Features#

  • Events are displayed in order of receipt (most recent at bottom).
  • Maximum of 2000 events per window; older entries are deleted.
  • Events are automatically logged to: \work\Ev_.log
  • Events can be saved manually via Save As.

Creating an Event Window#

Select: Desktop > Window > Event

Each event appears as a row with:

  • Priority Icon: High, Medium, or Low.
  • Date: When the event occurred.
  • Time: Timestamp.
  • Event Name: From Event File.
  • Description: Diagnostic info (HEX or converted text).

Display Options#

  • Events appear on every page by default.
  • Column widths are adjustable.
  • Appearance settings available via Display tab and System Menu.

System Menu – Events#

  • Clear All Event Windows: Removes all listed events.
  • Save As: Save events to a file.

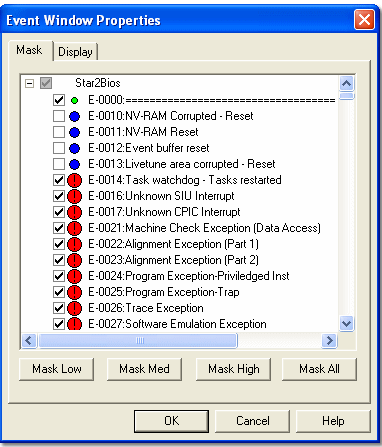

Event Masking#

  • Use the Mask tab in Window Properties.
  • Mask by:
    • Group: Entire application group.
    • Individual Events
    • Priority Level: Low, Medium, High, All

Event Mask
