Error Display

The Error Display shows diagnostic error flags from the ECU. Each error is represented by a special Measurement Parameter.

Features

• Errors are defined by the Error File included in the Program Version.
• Errors are uploaded live from the ECU (must be Online).
• Errors are listed in order of occurrence.
• Duplicate errors are not shown multiple times.
• Errors can be:
  • Current: Actively occurring.
  • Logged: Stored in the ECU from past occurrences.
• Logged errors persist until deleted.

Creating an Error Window

Select: Desktop > Window > Error

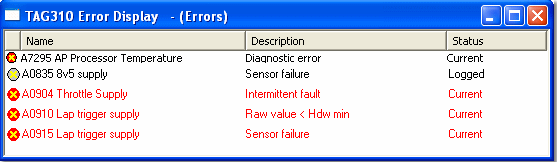

Each error appears as a row with:

• Status Icon:
  • Current error
  • Logged error
• Name: From Error File.
• Description: Cause or details.
• Status: Current or Logged.

Managing Errors

• Acknowledge: ECU > Acknowledge Errors
  • Changes colour from Unacknowledged to Foreground.
• Delete: ECU > Delete Errors
  • Removes logged errors from ECU and display.

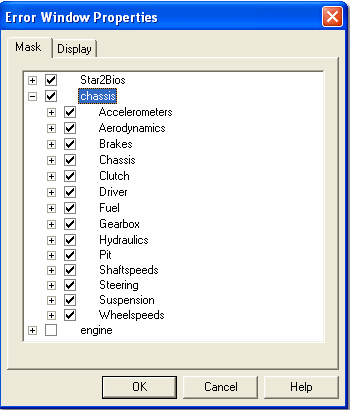

• Masking:
  • Use the Mask tab in Window Properties.
  • Mask entire groups or individual errors.

Display Options

• Errors appear on every page by default.
• Window auto-restores if minimised during error occurrence.
• Column widths are adjustable.
• Appearance settings available in Display tab and System Menu.
