Interacting with Parameters#

Parameter Browser#

The Parameter Browser allows you to select and manage Parameters for the currently selected Display. The available Parameters depend on those recorded in the loaded Session.

Opening the Parameter Browser

  • Click the Parameter Browser icon on the Browser Toolbar.
  • Select View > Parameter Browser from the Menu Bar.
  • Use the keyboard shortcut P with a display selected.
  • Right-click anywhere on a Display and choose Parameter Selection from the context menu.

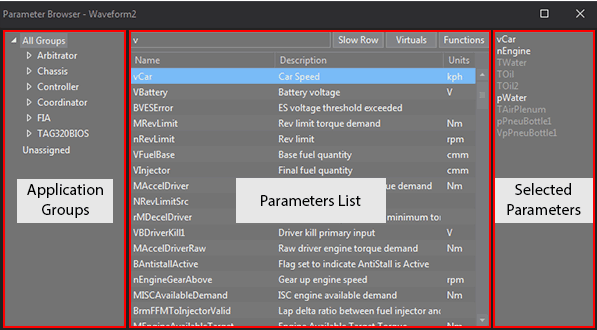

Parameter Browser Layout

Parameter Browser

  1. Application Groups Panel (Left)

    • Browse and select Application groups to view their Parameters.
    • Expand/collapse groups using arrows or double-click.
    • Use "All Groups" if unsure where a Parameter is located.

  2. Search Criteria and Parameters List (Center)

    • Search for Parameters by name or description.
    • Restrict search to Slow Row, Virtual Parameters, or Functions.
    • Add Parameters to the Display by double-clicking or dragging.
    • Select multiple Parameters with Ctrl/Shift + Click.
    • When comparing sessions, expand Parameters to see applicable sessions.

  3. Selected Parameters (Right)

    • Shows Parameters added to the current Display.
    • Parameters with data are white; those without are greyed out.
    • Select a Parameter to highlight it on the Display.
    • Press Delete to remove a selected Parameter

Changing Parameter Colour#

  1. Double-click the Parameter name on a Display to open the Parameter Properties window.
  2. In the Appearance section, type a colour name or select from the dropdown.
  3. Press Return or click to confirm the colour.

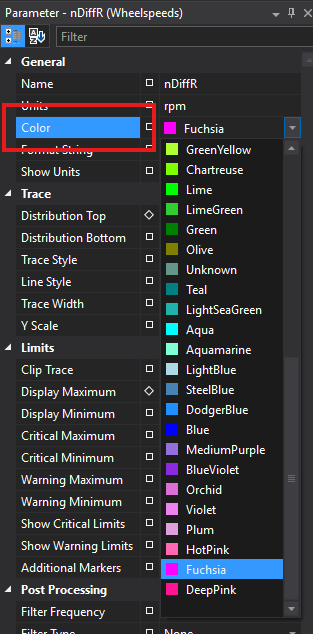

Parameter Colour

Parameter Aliasing (Changing Parameter Name)#

Parameter Aliasing lets you assign custom names to Parameters.

  • Replace Mode: Substitute original names with a new name in the same group.
  <AliasingConfiguration>
      <Aliases>
        <Alias mode="Replace">
            <OriginalNames>
              <Name>vCar:Chassis</Name>
            </OriginalNames>
            <NewName>Speed</NewName>
        </Alias>
      </Aliases>
  </AliasingConfiguration>
  • Pick Mode: Link a new name to one of several source names, with priority order.
  <AliasingConfiguration>
      <Aliases>
        <Alias mode="Pick">
            <OriginalNames>
              <Name>Speed:Chassis</Name>
              <Name>CoverageSq:ATLAS</Name>
            </OriginalNames>
            <NewName>GForce</NewName>
        </Alias>
      </Aliases>
  </AliasingConfiguration>

Configure aliasing in aliasing.config saved at %userprofile%\documents\McLaren Applied Technologies\.

Warning

After making changes to aliasing.config, you must restart ATLAS for the new aliases to take effect.

If a parameter (e.g., pBrake) is already present in your workbook and you create an alias (e.g., BrakePressure), pBrake will remain in the workbook but will no longer be searchable in the Parameter Browser. Only the alias name (BrakePressure) will be available for searching. To remove the old parameter name from your workbook, you need to delete it manually.

Application Groups#

Applications organize Parameters into groups (e.g., Bios, Chassis, Engine) for easier navigation. Groups are shown in a tree format in the Parameter Browser.

Number Formats#

Customize how Parameter values are displayed using format strings (similar to C language):

  • [text]%[control][total digits].[decimal digits][format code]
  • Control characters: + (show sign), - (left justify), 0 (leading zeros)
  • Format codes: f (float), d (integer), x (hex lower), X (hex upper)

Set formats in the Appearance frame of the Parameter Properties panel.

Parameter Properties Tool Window#

Manage Parameter appearance and behavior:

  • Default: Core properties from data acquisition.
  • Changed: Overrides for the current Display.
  • Global: Applies property value to all instances of the display type in the workbook.

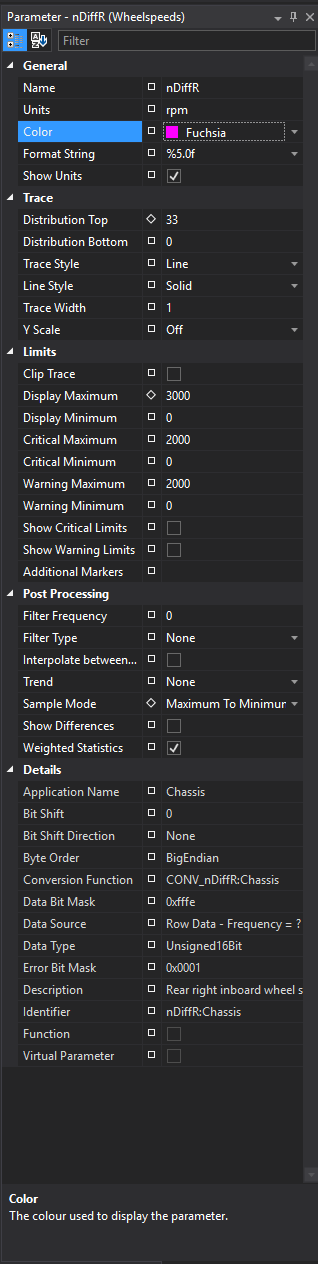

Parameter Properties

Editing Properties

  • Open the Parameter Properties tool window.
  • Click a property value to edit.

  • Right-click the icon next to a value for options:

    • Copy Name/Value
    • Paste Value
    • Show/Hide Description
    • Make Global
    • Clear Global Value
    • Reset to Default

Tip

Use the Parameter Browser and Properties tool window to fully customize how Parameters are displayed and behave in ATLAS.
