Using the Function Editor#

The Function Editor in ATLAS allows users to create, edit, and view Functions, which are used similarly to Parameters for data manipulation and display. Functions are written in the Function Definition Language (FDL) and can reference Parameters, Constants, other Functions, and Processors.

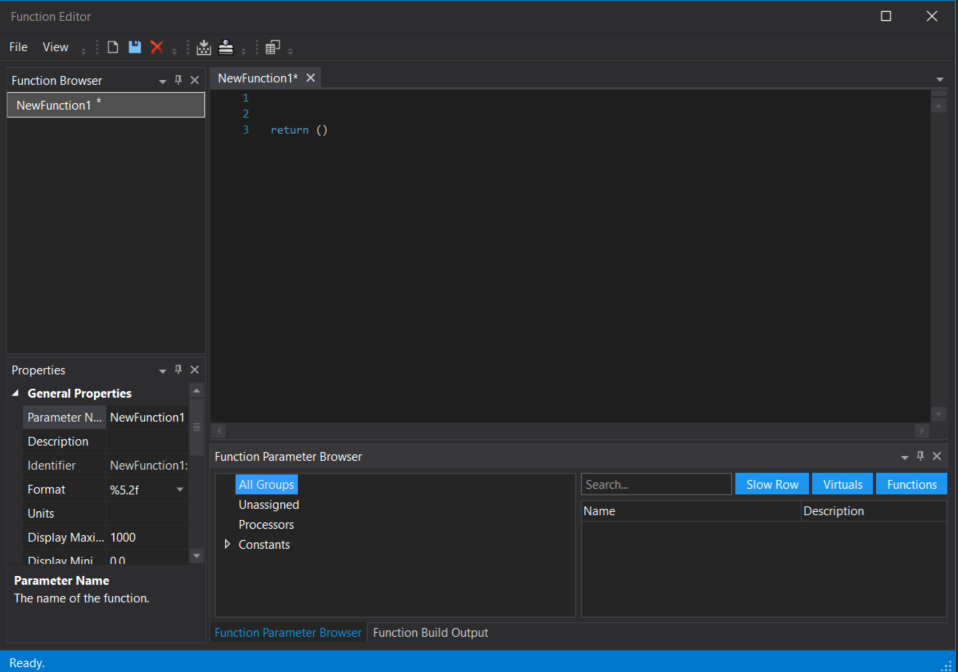

Function Editor

Quick Start — Creating Your First Function#

  1. Open the Function Editor and click New. Default General and Function properties are prefilled.
  2. Set General Properties (name, format, units, display min/max). These act like parameter properties for Displays.
  3. Insert inputs from the Function Parameter Browser (use search; press Enter or double‑click to insert). You can include Parameters, Constants, Processors, or existing Functions.
  4. Write FDL in the Function Definition panel (see sections below).
  5. Build (F6) to check syntax. Success and errors appear in Function Build Output.
  6. Save the Function; it becomes available like any Parameter in Displays.

Tip

If your environment does not have Resolve without App Name enabled (Options ▸ Data), use the full parameter identifier (e.g., vCar:Chassis) rather than a short name.

Opening the Function Editor#

  • Click the Function Editor button on the Browser Toolbar.
  • Select View > Function Editor from the Menu Bar.

Function Editor Panels#

  1. Function Browser: Lists existing functions. Select to view properties; double-click to edit code.
  2. Properties: Displays and allows editing of general and function-level properties.
  3. Function Definition: Central text editor for writing function code. Each opened function appears in a new tab.
  4. Function Build Output: Shows build progress, status, and errors.
  5. Function Parameter Browser: Search and add Parameters, Constants, and Functions to your function.

Editing Function Properties#

General Properties#

  • Parameter Name: Required. Used as the function's identifier.
  • Description: Editable only in Function Editor.
  • Identifier: Unique, read-only, auto-updated.
  • Format: Output format (default %5.2f).
  • Units: Display units (optional).
  • Display Minimum/Maximum: Axis scaling (default 0.0/1000, required).

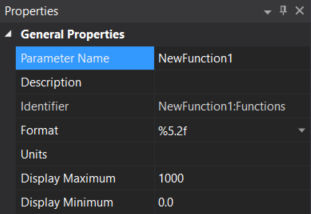

General Properties

Function Properties (how and when a Function calculates)#

When a Function uses multiple inputs sampled at different times, choose how often and where to compute results:

Function Mode

  • Instantaneous (On‑the‑fly) — evaluates at every sample point of every input; results are not stored. Default for non‑historical Functions.
  • Coverage cursor based — computes from Session start to the coverage cursor; results are stored. Default for historical Functions.
  • Leading edge — computes once at the leading edge, skipping gaps.

Calculation Mode

  • Each sample point
  • Fixed frequency (set Calculation Frequency (Hz) explicitly)
  • Highest rate

Additional options

  • Calculate Over Whole Session — compute across the entire Session.
  • Interpolate Between Samples — interpolate values off the current sample; if off, uses most recent sample.
  • Join Gaps Around Null — joins gaps for instantaneous Functions during recording (no effect on historical data).

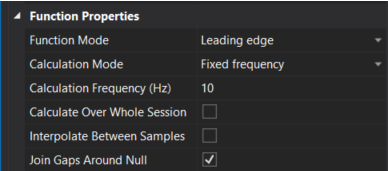

Function Properties

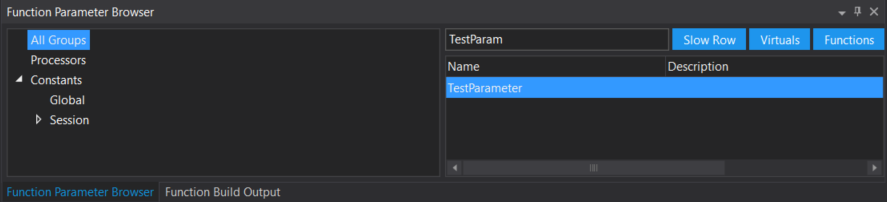

Using the Function Parameter Browser#

  • Search for Parameters, Constants, or Functions from loaded sessions.
  • Filter results by All Groups, Processors, or Constants.
  • Add items to your function by double-clicking or pressing Enter.

Parameter Browser

Function Build Output#

  • Displays build success or error messages.
  • Syntax errors show line and position for troubleshooting.
  • Execution errors are logged and disable the function until resolved.

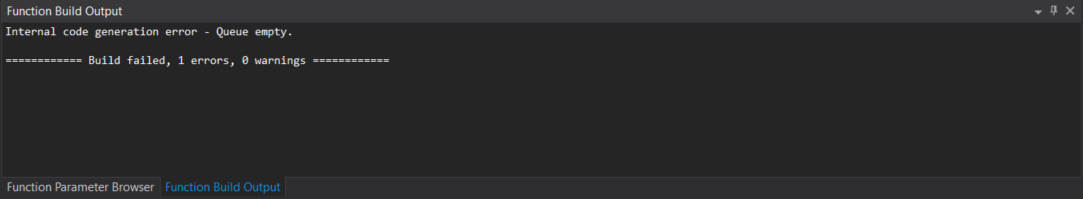

Build Output

Writing Functions in FDL#

Parameters

Insert Parameters in code with the $ prefix (e.g., $Vcar). Type $ then Ctrl+Space to list or filter available items. You may also insert via the Function Parameter Browser. If Resolve without App Name is off, use full identifiers (e.g., $vCar:Chassis)

Variables and Arrays

Define variables by assignment—no declarations needed; scope is per Function. Array subscripts can be expressions. Names can include letters, digits, and underscores, and must not clash with a Constant name.

for (i = 0; i < 3; i++) {
cyl[i] = 0;
}

Expressions and Operators

Expressions compute values using operators with a defined precedence (compatible with POSIX bc). Arithmetic (+ - * / % ^), relational (< <= > >= == !=), boolean (! && ||), bitwise (& ~ | >> <<), unary minus, and increment/decrement forms are supported. Parentheses () force evaluation order. Compound assignments (op=) evaluate the left side once (useful with arrays).

Statements and Control Flow

Statements control the sequence of evaluation of Expressions.

Statement Description
if (expression) statement1 [else statement2] Evaluates expression. If non-zero, executes statement1; if zero and else is present, executes statement2. The else clause is optional.
while (expression) statement Executes statement repeatedly while expression is non-zero. Evaluates expression before each iteration. Loop ends if expression is zero or a break is executed.
for ([expression1]; [expression2]; [expression3]) statement Controls repeated execution of statement. expression1 initializes the loop (first pass only). expression2 is checked before each iteration; if non-zero, executes statement. After each iteration, expression3 is evaluated. If expression2 is missing, it defaults to 1.
break Causes a forced exit from the most recent enclosing while or for loop.
continue (Extension) Causes the most recent enclosing for loop to start the next iteration.
return(expression) Returns the value of expression from a function. Always return a value from the first executed function, as Displays use it.
= null null is a special value meaning "not a number". Displays will not plot or calculate with null values.

Parentheses { } define a compound statement, allowing multiple statements to be grouped for execution within another statement. Newlines (or ;) separate statements; you can hide a newline with \\.

null means “not a number”

Displays don’t plot or compute with null.

Always return a value in the first executed Function (because Displays use it).

Comments

Use /* ... */. Comments act as delimiters and can span lines; don’t split identifiers with comments.

Referencing other functions

You can call previously saved Functions by name followed by (), e.g., FnSlip(). Functions are pre‑calculated when a Display opens; Live inputs update incrementally.

For more information on available expressions in FDL view the Processing Guide.

Working with Constants#

Constants live outside Functions (global scope) in default_constants.txt: C:\Users\[username]\Documents\McLaren Electronic Systems\ATLAS 9\Config

They can be numeric or string and are ideal for vehicle characteristics you reference across multiple Functions. If a Constant used by a Function is missing, the interpreter raises an execution error.

Constant Editor (open from Function Editor ▸ View ▸ Constants)

  • Add — enter Name and Value (string/number) and click Add.
  • Update — select, edit Name or Value, then Update (changing Name creates a new Constant).
  • Delete — select and Delete (confirm when prompted).

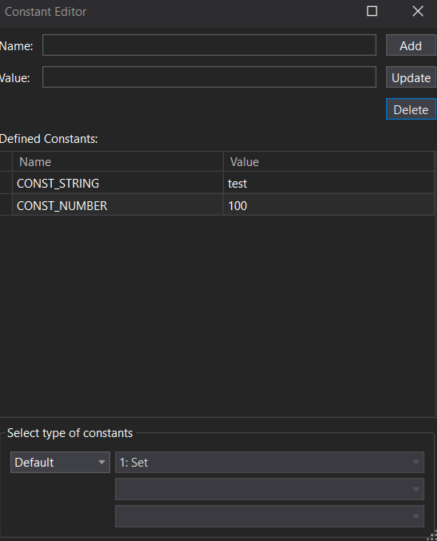

Constants

Types of Constants

  • Default — global, stored in default_constants.txt.
  • Session — stored within a specific Session; select Session type, then the Set and Session to view.

Error Handling#

  • Syntax Errors: Detected during build; must be resolved before use.
  • Execution Errors: Occur during function run; logged and disable the function.

Errors can also originate from Constants (missing/invalid) and Processors (e.g., invalid interpolation files).
