Loadmap Display

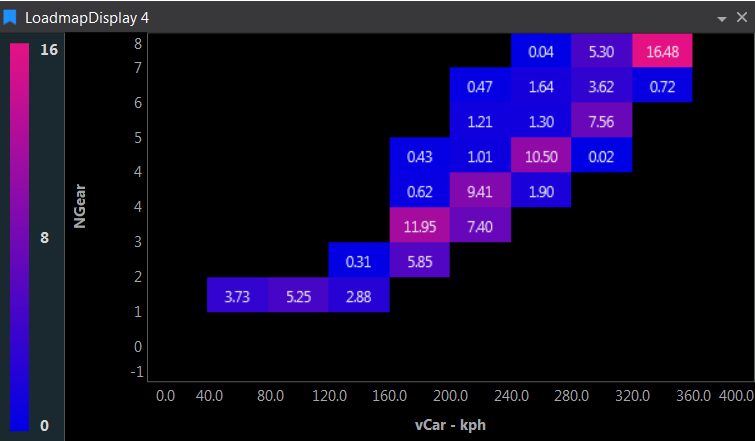

Pseudo‑3D heatmap of time spent in ranges of one parameter vs. another (e.g., gear vs. speed). Grid squares show in‑range value to nearest 1%; bucket counts control resolution. Refresh per lap in Live Mode.

Adding a Loadmap Display

To add a Loadmap Display to a Page do one of the following:

• Click the Loadmap Display button on the DisplayToolbar.

• Click File > New > Display and select Loadmap Display.

• Press Ctrl + Q twice to use the QuickAccess Assistant and select NewLoadmap Display.
