Bar Display#

Instantaneous value of selected parameters as vertical bars with numeric readouts. Updates in real time with telemetry. Up to 12 parameters. Double‑click a bar to edit that parameter’s properties.

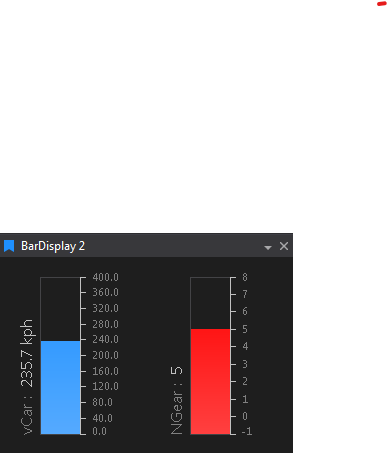

Bar Display

Adding a Bar Display#

To add a Bar Display to a Page do one of the following:

  • Click the Bar Display button on the Display Toolbar.

  • Click File > New > Display and select Bar Display.

  • Press Ctrl + Q twice to use the Quick Access Assistant and select New Bar Display.

You can now use the Parameter Browser to add some Parameters to set up the display as required.

Any number of bar graph displays can be opened at the same time.

The display updates in real time with the reception of Telemetry data.
